Interesting/ANDROID | Posted by hyena0 2008. 12. 4. 23:54

[안드로이드] 컬러 마스크 MASK





[Android] 컬러 마스크 MASK

이전에 엠보싱 효과는 녹색에 대해서만 처리할 수 있도록 Mask를 생성했었다.

여러번의 시행착오 끝에 RGB 전체를 MASK 할 수 있게 하는 코드를 작성했다.

MASK 호출 함수에 배열을 너무 크게 생성해 놓으면, 임베디드 디바이스에 적용되는 것이라 그런지 무지하게 느려지는 것을 알 수 있었다.

기존 마스크에 RGB를 구분 할 수 있는 인자를 넣어두고, 호출함수에는 부담을 줄인 뒤 메인함수에서 RGB를 각각 처리하는 방식으로 작성해 보았다.

private int[] mask2Colors(Bitmap bitmapO, int sltColor) {
     int W,H,ST;
     int orgColor=0;
     int greenColor=0;
     //get Height and Width
     H=bitmapO.getHeight();
     W=bitmapO.getWidth();
     ST = W;

     int[] colors = new int[ST * H];
     int avrColor=0;
     int[] masks = {1,1,1,1,1,1,1,1,1};//blurring 처리를 위한 배열 1/9 값을 넣어야 하나 1만 넣고 나중에 9를 나눔

      int Mh = 3; int Mw =3;
     int var =0;//MASK 계산될 색의 픽셀값

     //get bitmap color
      for (int y = 0; y < H; y++) {
             for (int x = 0; x < W; x++) {
              if(sltColor == 0){// 0 이면 적색
               orgColor = Color.red(bitmapO.getPixel(x, y));
              }
              if(sltColor == 1){// 1 이면 녹색
               orgColor = Color.green(bitmapO.getPixel(x, y));
              }
              if(sltColor == 2){// 2 이면 파란색
               orgColor = Color.blue(bitmapO.getPixel(x, y));
              }
              colors[y * ST + x] = orgColor;
             }
         }
      //calc. average value of colors
     for (int i=0;i<H*W;i++){
      avrColor += colors[i];
     }
     avrColor /= H*W;
     //mask the color
     //i는 계산될 높이 계산될 폭만큼의 반복범위임
     for (int i=0;i<(H-Mh)*(W-Mw);i++){

       //mask 계산
        var = colors[i]*masks[0]      + colors[i+1]*masks[1]      + colors[i+2]*masks[2]
             +colors[W+i]*masks[3]    + colors[W+i+1]*masks[4]    + colors[W+i+2]*masks[5]
             +colors[(W+1)+i]*masks[6]+ colors[(W+1)+i+1]*masks[7]+ colors[(W+1)+i+2]*masks[8];

        var = var/9; //1/9 효과를 나타냄
        //blur일 경우는 평균값 더하지 않기
        //var +=avrColor;
        colors[i]=var;
        var =0;//var 초기화
     }

     //make argb style
        for (int y = 0; y < H; y++) {
            for (int x = 0; x < W; x++) {
             if(sltColor ==0){// 0 이면 적색
              orgColor = colors[y * ST + x];
              orgColor = orgColor<<16;//red shift
              orgColor = 0x00FF0000 & orgColor;
             }
             if(sltColor ==1){// 1 이면 녹색
              orgColor = colors[y * ST + x];
              orgColor = orgColor<<8;//green shift
              orgColor = 0x0000FF00 & orgColor;
             }
             if(sltColor == 2){// 2 이면 파란색
              orgColor = colors[y * ST + x];
             }
             colors[y * ST + x] = orgColor;
            }
        }
      return colors;
    }

아래는 적용해 본 엠보싱 이미지와 Blurring 이미지 이다. 원본 이미지를 볼려면 여기를 보면 된다.

<<엠보싱>>

<<Blurring>>(3x3)

Interesting/ANDROID | Posted by hyena0 2008. 12. 2. 01:23

[안드로이드] 엠보싱 바로잡기





[Android] 엠보싱효과 바로잡기

이전 포스팅에서 보여주었던 마스크 처리부분에서 엠보싱효과와 샤프닝은 잘못된 결과라는 것을 알게 되었다.
그 이유는 안드로이드에서 제공되는 색의 처리방법이 aRGB라는 방식인데 a는 투명도를 의미하고, R은 적색, G는 녹색, B는 파란색을 의미한다. 색의 값은 16진수로 0xAARRGGBB 가 되고 예로 100%불투명한 적색이라고 하면 0x00FF0000 이 된다. 마스크 방식으로 한 픽셀에 대해 계산하려면 RGB에 대해 각각 처리를 해야 한다. 하지만 기존의 코드에서는 aRGB 값 자체를 계산했기 때문에 거칠은 영상이 만들어졌다.

아래의 수정된 코드로 나온 결과값을 한번 살펴보자.

private int[] maskColors(Bitmap bitmapO) {
     int W,H,ST;
     int orgColor=0;
     int greenColor=0;
     //get Height and Width
     H=bitmapO.getHeight();
     W=bitmapO.getWidth();
     ST = W;

     int[] colors = new int[ST * H];
     int avrColor=0;
     //embossing
     //45도  {0,0,-1,0,0,0,1,0,0}
     //90도  {0,-1,0,0,0,0,0,1,0}
     //135도{-1,0,0,0,0,0,0,0,1}


     int[] masks = {0,0,-1,0,0,0,1,0,};
     //Mask height, width
     int Mh = 3; int Mw =3;
     int var =0;//MASK 계산될 색의 픽셀값

     //get bitmap color
        for (int y = 0; y < H; y++) {
            for (int x = 0; x < W; x++) {
             orgColor = bitmapO.getPixel(x, y);
             greenColor = 0x0000FF00 & orgColor; // 녹색에 해당하는 부분을 처리
             greenColor = greenColor>>8; // 마스크 처리를 위해 8비트를 시프트한다.
             colors[y * ST + x] = greenColor;            }
        }
      //calc. average value of colors
     for (int i=0;i<H*W;i++){
      avrColor += colors[i];
     }
     avrColor /= H*W;
     //mask the color
     //i는 계산될 높이 계산될 폭만큼의 반복범위임

     for (int i=0;i<(H-Mh)*(W-Mw);i++){

       //mask 계산
        var = colors[i]*masks[0]      + colors[i+1]*masks[1]      + colors[i+2]*masks[2]
             +colors[W+i]*masks[3]    + colors[W+i+1]*masks[4]    + colors[W+i+2]*masks[5]
             +colors[(W+1)+i]*masks[6]+ colors[(W+1)+i+1]*masks[7]+ colors[(W+1)+i+2]*masks[8];

        var +=avrColor; //평균값을 더한다.
        colors[i]=var;
        var =0;//var 초기화
     }

     //aRGB 형태로 다시 저장
        for (int y = 0; y < H; y++) {
            for (int x = 0; x < W; x++) {
             greenColor = colors[y * ST + x];
             greenColor = greenColor<<8;
             greenColor = 0x0000FF00 & greenColor;
             colors[y * ST + x] = greenColor;
            }
        }
      return colors;
    }

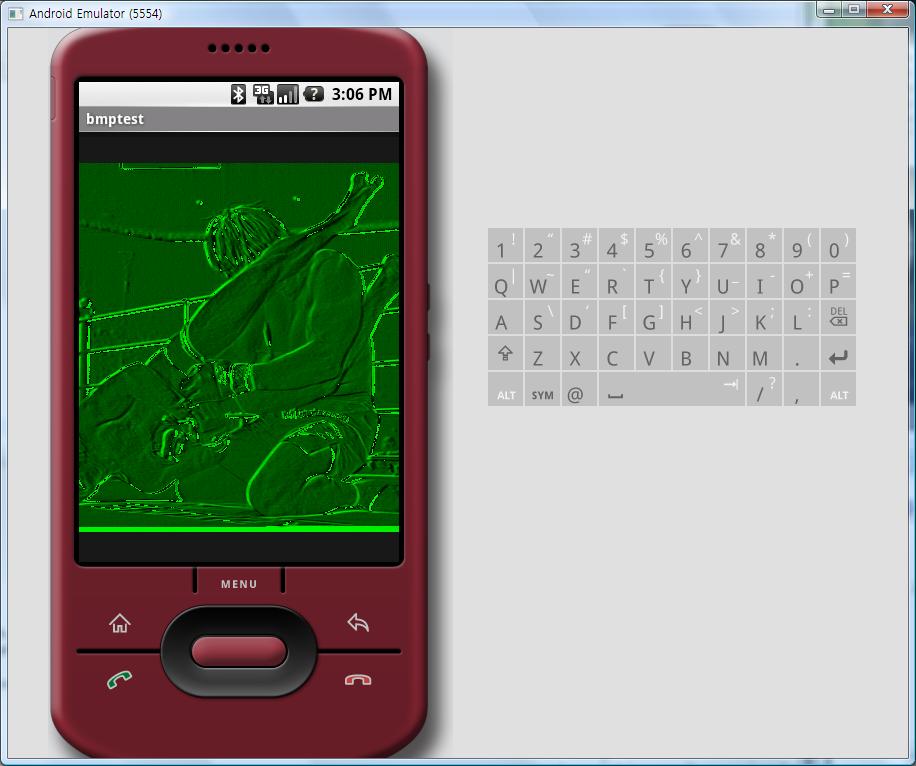

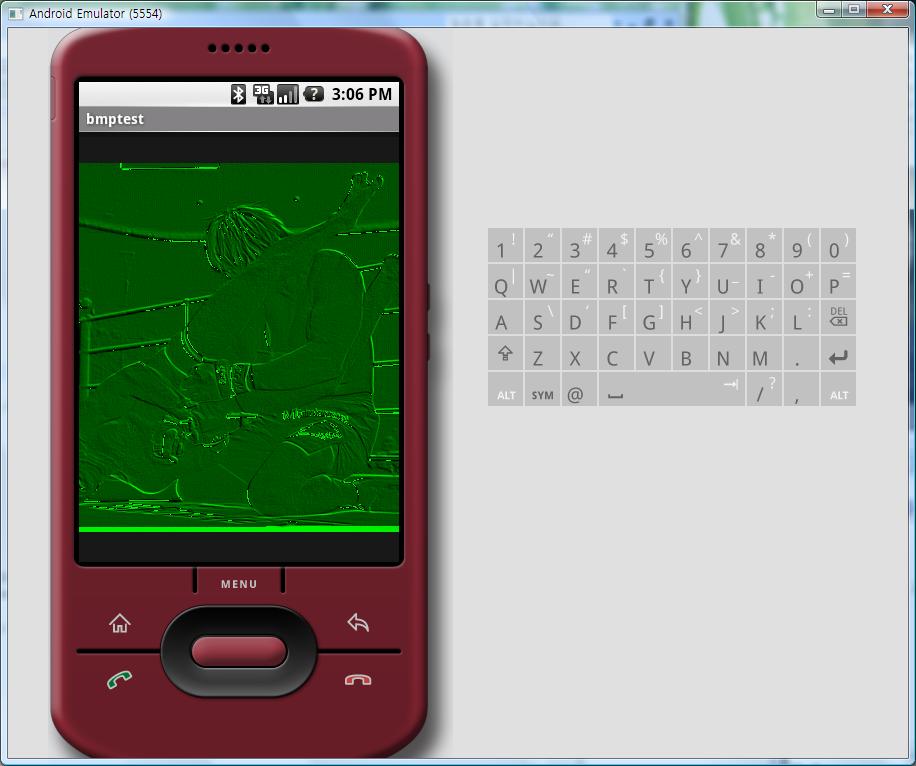

이렇게 처리한 결과는 아래와 같이 엠보싱효과를 보인다. 이전 포스팅 결과와 확연한 차이를 보인다.

//45도  {0,0,-1,0,0,0,1,0,0}

//90도  {0,-1,0,0,0,0,0,1,0}

//135도{-1,0,0,0,0,0,0,0,1}




[Android] 이미지 마스크 처리 - 엠보싱 효과

사진을 표시하는 예제는 앞에서 해보았다.

이 예제를 바탕으로 마스크 처리를 통해 이미지가 어떻게 변화되는지, 어떻게 처리할 것인지 고민해 보려고 한다.

앞서 봤듯이 안드로이드에서 BMP 처리가 1차원 배열로 되어 있으므로 평면 계산을 2차원으로 바꾸어도 되지만, 시간지연이 많이 발생하므로 1차원을 2차원으로 고려하여 미리 계산해 수식을 만들어 놓고 프로세싱되도록 구현하였다.

자세한 내용은 다음 포스팅에 하기로 하고 주요 코드는 아래와 같다.

private int[] maskColors(Bitmap bitmapO) {
     int W,H,ST;
     //get Height and Width
     H=bitmapO.getHeight();
     W=bitmapO.getWidth();
     ST = W;
     int[] colors = new int[ST * H];
     int avrColor=0;
     //embossing 효과
     //45도  {0,0,-1,0,0,0,1,0,0}
     //90도  {0,-1,0,0,0,0,0,1,0}
     //135도{-1,0,0,0,0,0,0,0,1}

     int[] masks = {-1,0,0,0,0,0,0,0,1};
     //Mask height, width
     int Mh = 3; int Mw =3;
     int var =0;//MASK 계산될 색의 픽셀값

     //get bitmap color
        for (int y = 0; y < H; y++) {
            for (int x = 0; x < W; x++) {
             colors[y * ST + x] = bitmapO.getPixel(x, y);
            }
        }
      //calc. average value of colors
     for (int i=0;i<H*W;i++){
      avrColor += colors[i];
     }
     avrColor /= H*W;
     //mask the color
     //i는 계산될 높이 계산될 폭만큼의 반복범위임
     for (int i=0;i<(H-Mh)*(W-Mw);i++){
       //mask 계산
        var = colors[i]*masks[0]      + colors[i+1]*masks[1]      + colors[i+2]*masks[2]
             +colors[W+i]*masks[3]    + colors[W+i+1]*masks[4]    + colors[W+i+2]*masks[5]
             +colors[(W+1)+i]*masks[6]+ colors[(W+1)+i+1]*masks[7]+ colors[(W+1)+i+2]*masks[8];
        var +=avrColor; //마스크 값에 색의 평균값을 더함
        colors[i]=var; //계산된 마스크 값을 픽셀값으로 저장함
        var =0;//var 초기화
     }
      return colors;
    }

해당 maskColors 함수를 Activity에서 호출하여 BMP 객체를 생성하여 넣어주면 아래와 같은 결과를 얻을 수 있다.
<<135도 엠보싱>>

<<90도 엠보싱>>

<<45도 엠보싱>>
